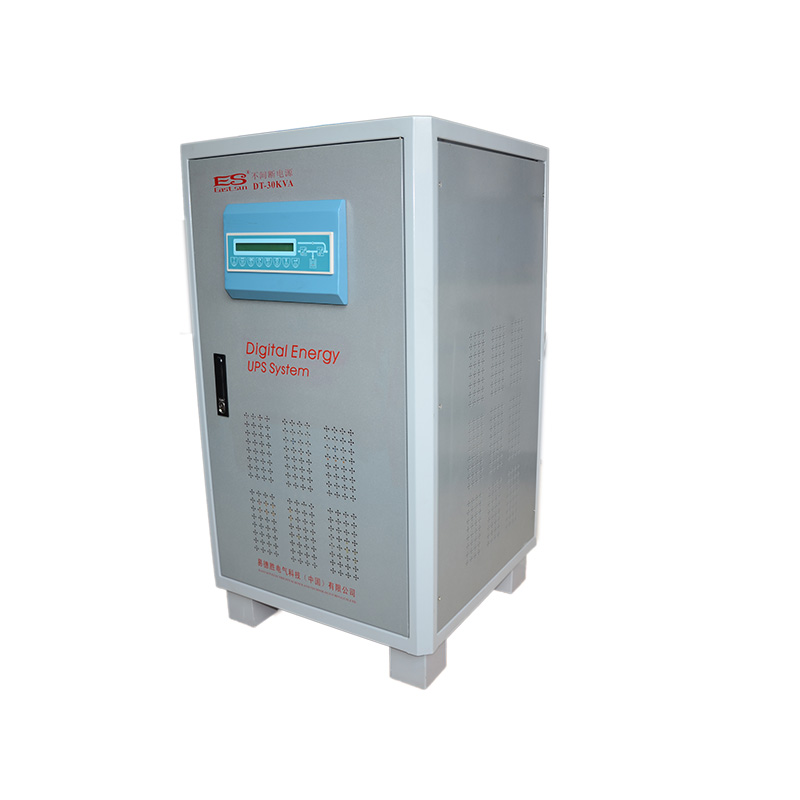

ESD series 30KVA online 3 phase in single phase out UPS
ESD series 30KVA online3 phase in single phase out UPS is an on-line double-conversion UPS with output isolation transformer built-in, offering high levels of reliability and performanance for all kinds of load.
Features:
● Three / single-phase models with on-line double convesion technology
● DSP (Digital Signal Processors) technology
● Suitable for all kinds of loads (resistive, inductive and non-linear loads etc)
● High overload capability (up to 150%)
● Bypass dual DSP control design to enhance more reliability
● Redundant & parallelable with advanced parallel current-sharing control technology,Optional N+X redundancy parallel up to 8 units
● Cold start and mains start function
● High charging capability
● Standard configuration with output isolation transformer
● Superior protection (surgers, short-circuit, overvoltages, undervoltages, overcharge, reverse connection protection etc)
● Advanced communications (RS232 and USB ports (standard), SNMP, dry contacts and RS485 (options)
● Other options (parallel kits, input isolation transformer, bypass isolation transformer and harmonic suppressor)
model |
TD30K |
Norminal capacity(KW) |
30/24 |
battery voltage |
384VDC |
Charge current |
6A~20A(adjustable) |
Input voltage |
380VAC±25% |
Input Frequency |
50/60Hz±10% |
Output voltage |
220VAC±1% |
Output frequency |
Synchronized with utility in mains mode,50/60Hz±1% in battery mode |
Waveform |
Pure Sine Wave |
Total harmonic distortion |
Linear load<3%;non-linear load<5% |
Crest factor |
3:1 |
Protection |
Short-circuit,overload,overvoltage,undervoltage,low battery,overtemperature,fan fault |
Inverter overload capability |
125%,10min;150%,1min |
Transfer time |
0ms |
Operating temperature |
-20~40℃ |
Relative humidity |
0~90% |
Running high(maximum) |
<1000(each additional 100 meters power fell 1% to a maximum 4,000 meters) |
Cooling |
Forced ventilation |
Noise |
≤53DB(Distance 1m) |
Size |
360*625*990(192V) & 630*650*1130(384V) (W*H*D mm) |
